HOGAN-40
Calcium aluminate cement
(HS CODE: 3816009000)
Specification

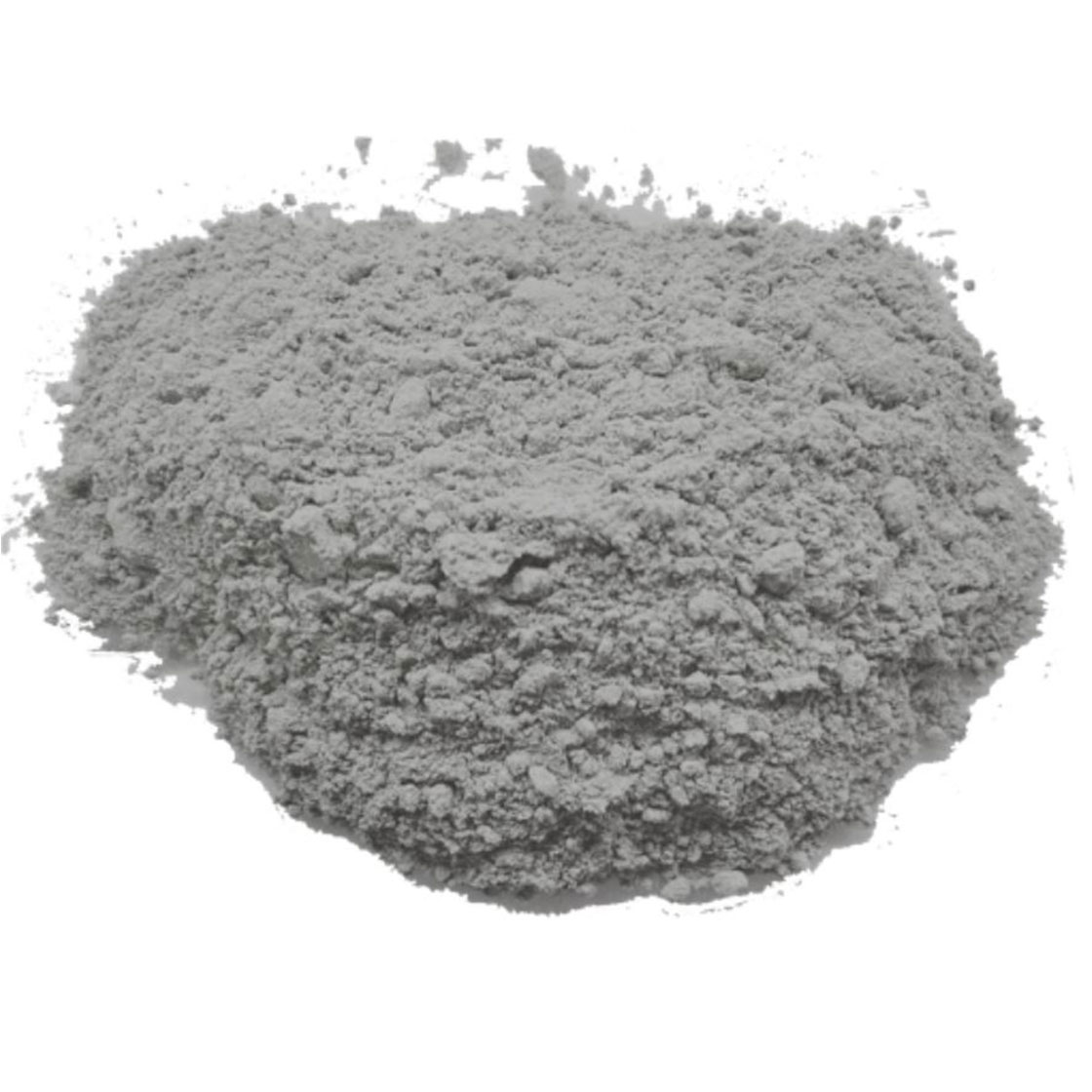

HOGAN-40 – is a calcium aluminate cement.
HOGAN-40 – is used for the manufacture of refractory concretes intended for thermal units lining.
Chemical composition
| Main components | Typical values, % | Limit values, % |
| AI2O3 | 35.5-41.0 | >35.0 |
| CaO | 31.0-37.0 | – |
| SiO2 | 5.0-9.0 | – |
| Fe2Oa | 10.0-16.0 | – |
Setting
| Time | Typical values | Limit values |
| Setting start, min. | 90-360 | >45 |
| Setting end, min. | 150-500 | <600 |
Mechanical strength
Cold crushing strength, MPa
| Time | Limit values |
| 24 h | >22.5 |
| 72 h | >40 |
Storage
As any hydraulic binder, HOGAN-40 must be stored in dry conditions and off the ground. In this case, it will retain its properties for twelve months.
Package

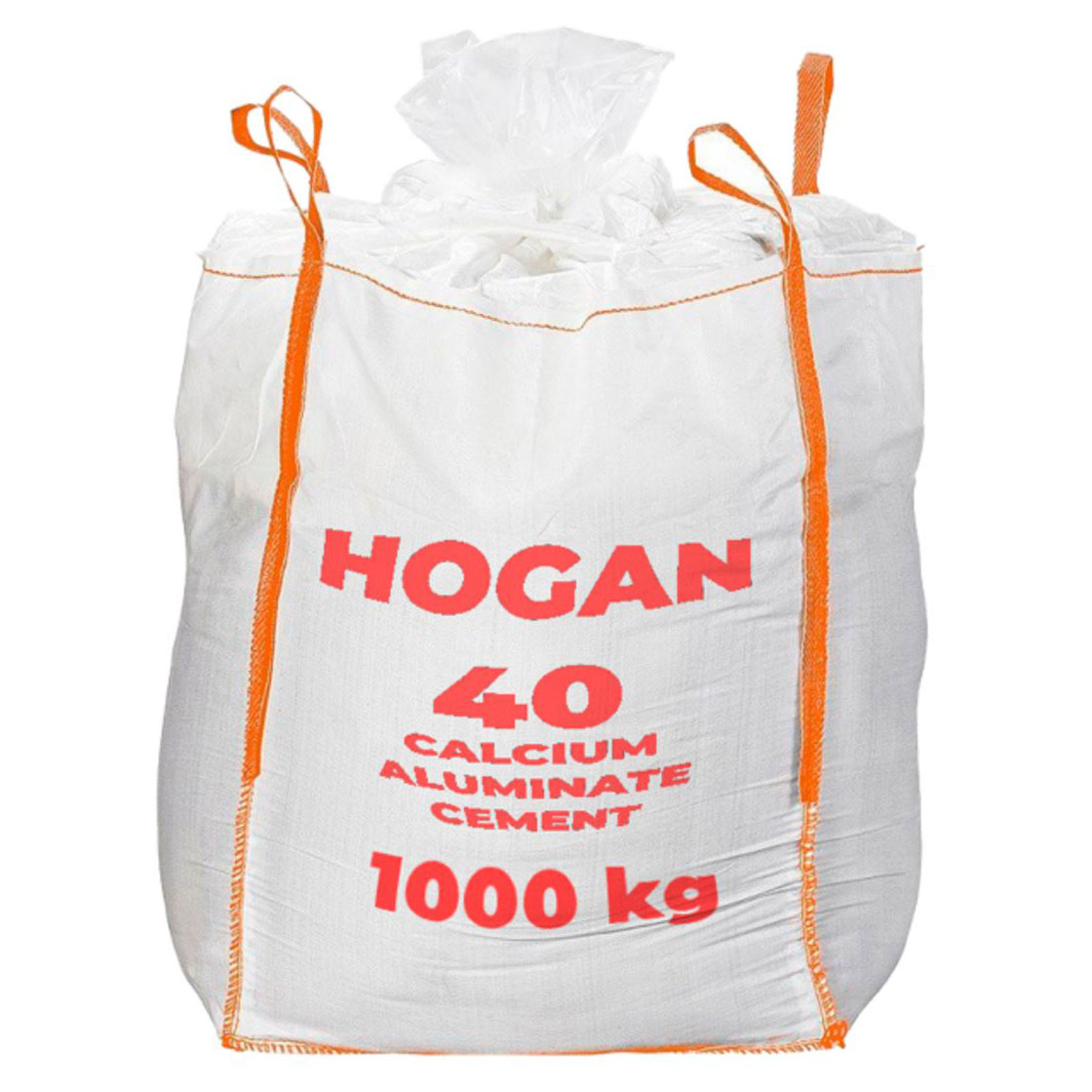

Calcium aluminate cement HOGAN-40 is packed in 25 kg paper bags, or in 1 t jumbo bags*.
* Individual packaging is agreed at the customer’s request.
The data given are typical values.
Warranty indicators should be agreed upon when concluding a supply contract.
The appearance of the packaging and the product may differ from the one presented.
